# Complete Guide to Integrating VisioForge .NET SDKs with Visual Studio for Mac

Video Capture SDK .Net Video Edit SDK .Net Media Blocks SDK .Net Media Player SDK .Net

VisioForge provides powerful multimedia SDKs for .NET developers working on macOS and iOS platforms. This detailed guide will walk you through the entire process of integrating these SDKs into your Visual Studio for Mac projects. While this tutorial primarily focuses on macOS application development, the same principles apply to iOS applications with minimal adaptations.

By following this guide, you'll learn how to properly set up your development environment, install the necessary packages, configure UI components, and prepare your application for deployment. This knowledge will serve as a solid foundation for building sophisticated multimedia applications using VisioForge technology.

Before starting the integration process, ensure you have:

• Visual Studio for Mac (latest version recommended)
• .NET SDK installed (minimum version 6.0)
• Basic knowledge of C# and .NET development
• Administrative access to your macOS system
• Active internet connection for NuGet package downloads
• Optional: XCode for storyboard editing

Having these prerequisites in place will ensure a smooth installation process and prevent common setup issues.

Let's begin by creating a new macOS project in Visual Studio for Mac. This will serve as the foundation for our VisioForge SDK integration.

1. Launch Visual Studio for Mac.
2. Select File > New Solution from the menu bar.
3. In the template selection dialog, navigate to .NET > App.
4. Choose macOS Application as your project template.
5. Configure your project settings, including:
   • Project name (choose something descriptive)
   • Organization identifier (typically in reverse domain format)
   • Target framework (.NET 6.0 or later recommended)
   • Solution name (can match your project name)
6. Click Create to generate your project template.

This creates a basic macOS application with the standard project structure required for VisioForge SDK integration.

After creating your project, the next step is to install the necessary VisioForge SDK packages via NuGet. These packages contain the core functionality and UI components required for multimedia operations.

Each VisioForge product line has a dedicated main package that contains the core functionality. You'll need to choose the appropriate package based on your development requirements.

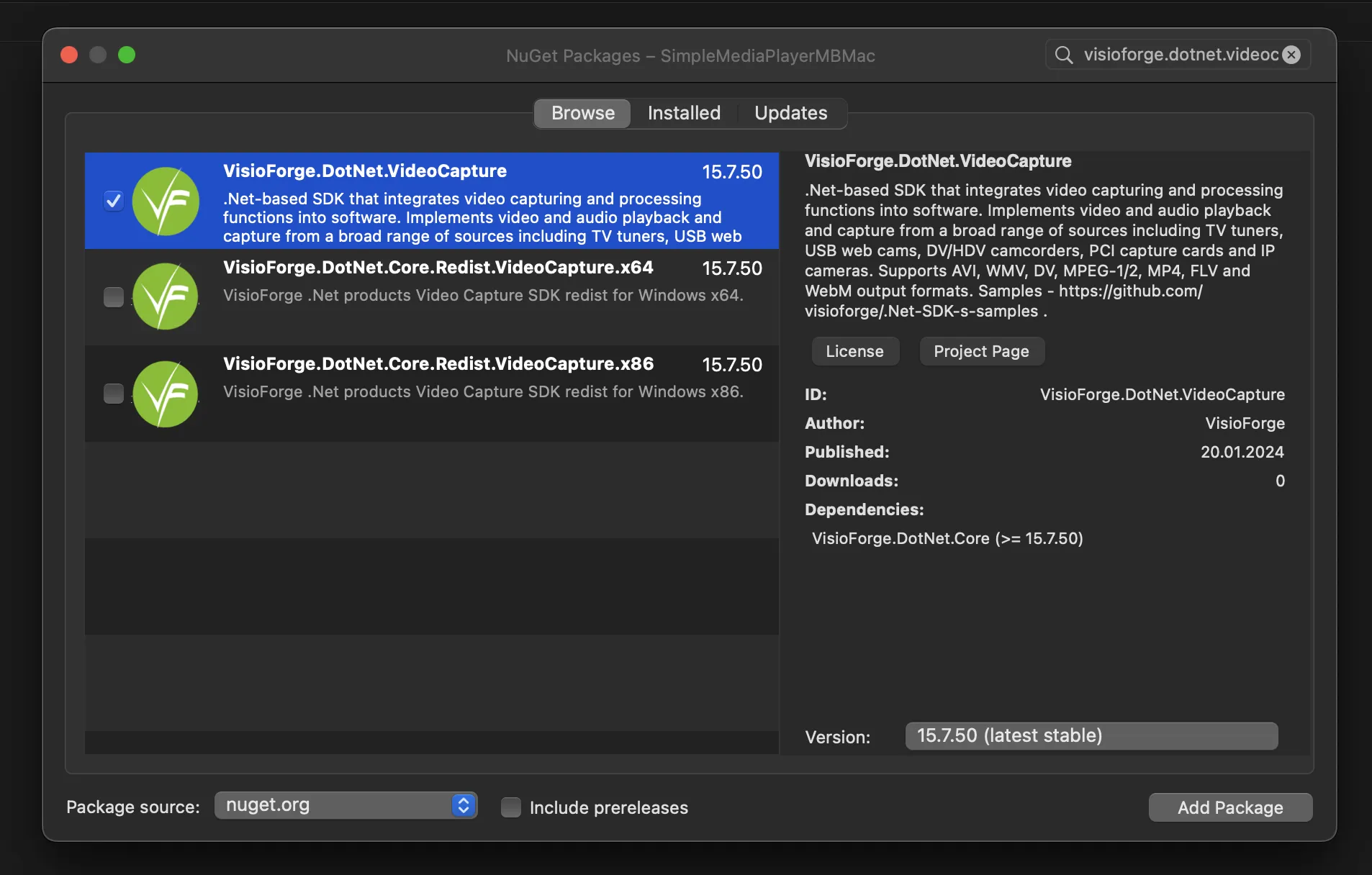

1. Right-click on your project in the Solution Explorer.
2. Select Manage NuGet Packages from the context menu.
3. Click on the Browse tab in the NuGet Package Manager.
4. In the search box, type "VisioForge" to find all available packages.
5. Select one of the following packages based on your requirements:

Available NuGet packages:

• VisioForge.DotNet.VideoCapture - For video capture, webcam, and screen recording functionality
• VisioForge.DotNet.VideoEdit - For video editing, processing, and conversion
• VisioForge.DotNet.MediaPlayer - For media playback and streaming
• VisioForge.DotNet.MediaBlocks - For advanced media processing workflows

6. Click Add Package to install your selected package.
7. Accept any license agreements that appear.

The installation process will automatically resolve dependencies and add references to your project.

For macOS and iOS applications, you'll need the Apple-specific UI components that allow VisioForge SDKs to integrate with native UI elements.

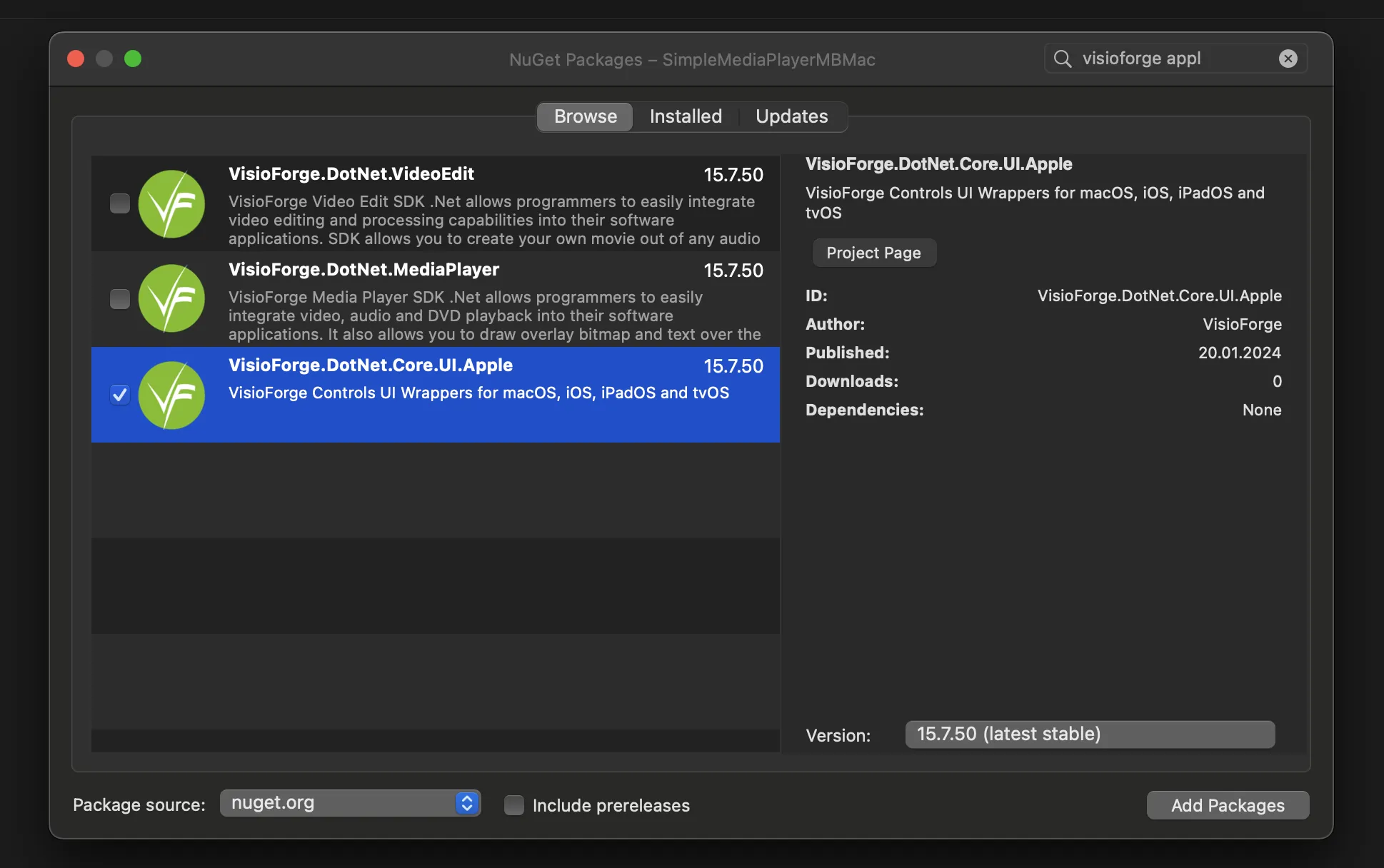

1. In the NuGet Package Manager, search for "VisioForge.DotNet.UI.Apple".
2. Select the package from the results list.
3. Click Add Package to install.

This package includes specialized controls designed specifically for Apple platforms, ensuring proper visual integration and performance optimization.

Most multimedia applications require video preview functionality. VisioForge SDKs provide specialized controls for this purpose that integrate seamlessly with macOS applications.

The VideoView control is the primary component for displaying video content in your application. Here's how to add it to your interface:

1. Open your application's main storyboard file by double-clicking it in the Solution Explorer.
2. Visual Studio for Mac will open XCode Interface Builder for storyboard editing.
3. From the Object Library, find the Custom View control.
4. Drag the Custom View control onto your window where you want the video to appear.
5. Set appropriate constraints to ensure proper sizing and positioning.
6. Using the Identity Inspector, set a descriptive name for your Custom View (e.g., "videoViewHost").
7. Save your changes and return to Visual Studio for Mac.

This Custom View will serve as a container for the VisioForge VideoView control, which will be added programmatically.

After adding the container Custom View, you need to initialize the VideoView control programmatically:

1. Open your ViewController.cs file.
2. Add the necessary using directives at the top of the file:

using VisioForge.Core.UI.Apple;
using CoreGraphics;

3. Add a private field to your ViewController class to hold the VideoView reference:

private VideoViewGL _videoView;

4. Modify the ViewDidLoad method to initialize and add the VideoView:

public override void ViewDidLoad()
{
    base.ViewDidLoad();

    // Create and add VideoView
    _videoView = new VideoViewGL(new CGRect(0, 0, videoViewHost.Bounds.Width, videoViewHost.Bounds.Height));
    this.videoViewHost.AddSubview(_videoView);

    // Configure VideoView properties
    _videoView.AutoresizingMask = Foundation.NSViewResizingMask.WidthSizable | Foundation.NSViewResizingMask.HeightSizable;
    _videoView.BackgroundColor = NSColor.Black;

    // Additional initialization code
    InitializeMediaComponents();
}

private void InitializeMediaComponents()
{
    // Initialize your VisioForge SDK components here
    // For example, for MediaPlayer:
    // var player = new MediaPlayer();
    // player.VideoView = _videoView;
    // Additional configuration...
}

This code creates a new VideoViewGL instance (optimized for hardware acceleration), sizes it to match your container view, and adds it as a subview. The AutoresizingMask property ensures that the video view resizes properly when the window size changes.

VisioForge SDKs rely on various native libraries and components that must be included in your application bundle. These dependencies vary based on the specific SDK you're using and your target platform.

Check the deployment documentation for detailed information on which redistribution packages are required for your specific scenario.

If you encounter issues during installation or integration, consider these common solutions:

1. Missing dependencies: Ensure all required redistribution packages are installed
2. Build errors: Verify that your project targets a compatible .NET version
3. Runtime crashes: Check for platform-specific initialization issues
4. Black video display: Verify that the VideoView is properly initialized and added to the view hierarchy
5. Performance issues: Consider enabling hardware acceleration where available

For more specific troubleshooting guidance, refer to the VisioForge documentation or contact their support team.

Now that you've successfully integrated VisioForge SDKs into your Visual Studio for Mac project, you can explore more advanced features and capabilities:

• Create custom video processing workflows
• Implement recording and capture functionality
• Develop sophisticated media editing features
• Build streaming media applications

• Visit our GitHub repository for code samples and example projects
• Join the developer forum to connect with other developers
• Subscribe to our newsletter for updates on new features and best practices

By following this guide, you've established a solid foundation for developing powerful multimedia applications on macOS and iOS using VisioForge SDKs and Visual Studio for Mac.
